Tecumseh Charging System
- M Bailey
-
Topic Author
- Offline
- Supporter
-

Registered

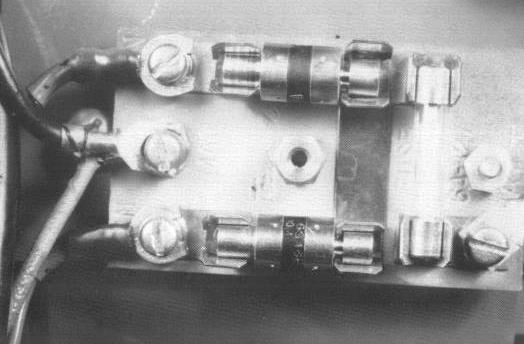

H-60 rectifier/fuse panel
In the event you need to replace your diodes, check for the correct value fuse and do a search for 1N1081 diodes (1N1081 through 1N1084 are compatible, the higher numbers having a higher peak voltage rating) which can still be found and are much cheaper than the Tecumseh part number.
Major
"I refuse to join any club that would have me as a member." Groucho Marx
Please Log in to join the conversation.
- Geno
-
- Offline
- Administrator Supporter
-

Super Users
- Wheel Horse Stables Owner
- AJ WH Ranger
-
- Offline
- Supporter
-

Registered
- Posts: 477
You can replace those god awful expensive fuse type diodes with a couple 75 cent diodes..
AJ
Bassin' and Horsin' around!
66 Lawn Ranger
68 Lawn Ranger
72 Charger 10 auto
74 C-100 8-Speed
81 C-101 Blackhood
Please Log in to join the conversation.
- M Bailey
-
Topic Author
- Offline
- Supporter
-

Registered
- Posts: 654
AJ WH Ranger wrote: So with a steady hand, correct diodes and a soldering iron....
You can replace those god awful expensive fuse type diodes with a couple 75 cent diodes..
You got it AJ, I silver soldered in a couple of these... HER602, 6 amp
Even a 1N4001 1 amp would be an improvement.
Major
"I refuse to join any club that would have me as a member." Groucho Marx
Please Log in to join the conversation.
- AJ WH Ranger
-
- Offline
- Supporter
-

Registered
- Posts: 477
The only difference with those is the VF (forward voltage) which is just slightly under the original 1.5v coming in at 1.2v.
[strike]But on something like this.. That .3v will not be missed at all as long as the engine maintains at 6 amp. Because the VF (I believe) will decrease with a drop in current[/strike]..
Edit...
I was completely on the wrong semiconductor... Forget what I said.. I will leave it up so people can read my mistake...
A diodes VF (forward voltage) is it switching on voltage... Nothing what like what I said below... Which also brings up another point Major. If the IF is not at the rated 6 amps, what will the VF actually be at? I doubt it follows a linear path as most diodes don't.
AJ
Bassin' and Horsin' around!
66 Lawn Ranger
68 Lawn Ranger
72 Charger 10 auto
74 C-100 8-Speed
81 C-101 Blackhood
Please Log in to join the conversation.
- M Bailey
-
Topic Author
- Offline
- Supporter
-

Registered
- Posts: 654
AJ WH Ranger wrote: Yes Nailed it!
The only difference with those is the VF (forward voltage) which is just slightly under the original 1.5v coming in at 1.2v.
[strike]But on something like this.. That .3v will not be missed at all as long as the engine maintains at 6 amp. Because the VF (I believe) will decrease with a drop in current[/strike]..
Edit...
I was completely on the wrong semiconductor... Forget what I said.. I will leave it up so people can read my mistake...
A diodes VF (forward voltage) is it switching on voltage... Nothing what like what I said below... Which also brings up another point Major. If the IF is not at the rated 6 amps, what will the VF actually be at? I doubt it follows a linear path as most diodes don't.
AJ, according to the HER602 graph, at 3 amps (alternator output max) the Vf is .8 increasing to 1.0 at the rated 6 amp max.
