level 48 inch mower side to side

More
08 Oct 2020 08:01 #16408 by Guy

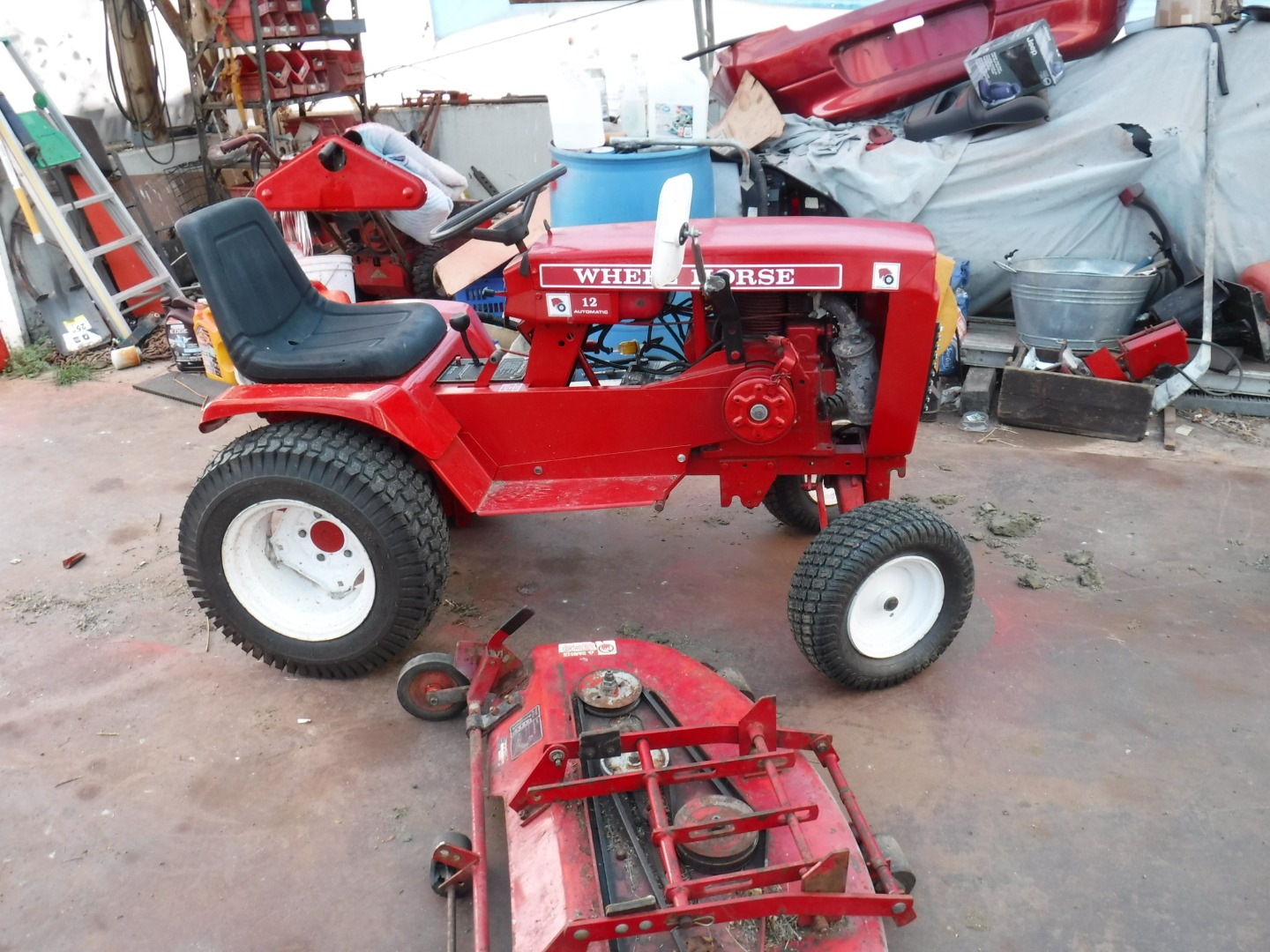

Can someone tell me where to find how to build the side to side level attachment for a 48 inch sd (1986) it is mounted on my 1973 Automatic but hangs at quite an angle
Thanks

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
08 Oct 2020 14:54 #16410 by Geno
Hi Guy. I moved this here because it was in the picture section. :thumb1

Side to side (right to left sitting on the tractor) is done by the rear guide wheels, there is no adjustment. Are you talking about that or the front to rear angle adjustment?

Welcome to the Stables!

Please Log in to join the conversation.

More
08 Oct 2020 17:13 #16412 by Guy
left to right when I put the back wheels high to cut the grass at 2-4 inches and pick the front up the right side rises 1 and 1/2 inch higher
Thanks

Please Log in to join the conversation.

More
08 Oct 2020 17:43 #16413 by Guy

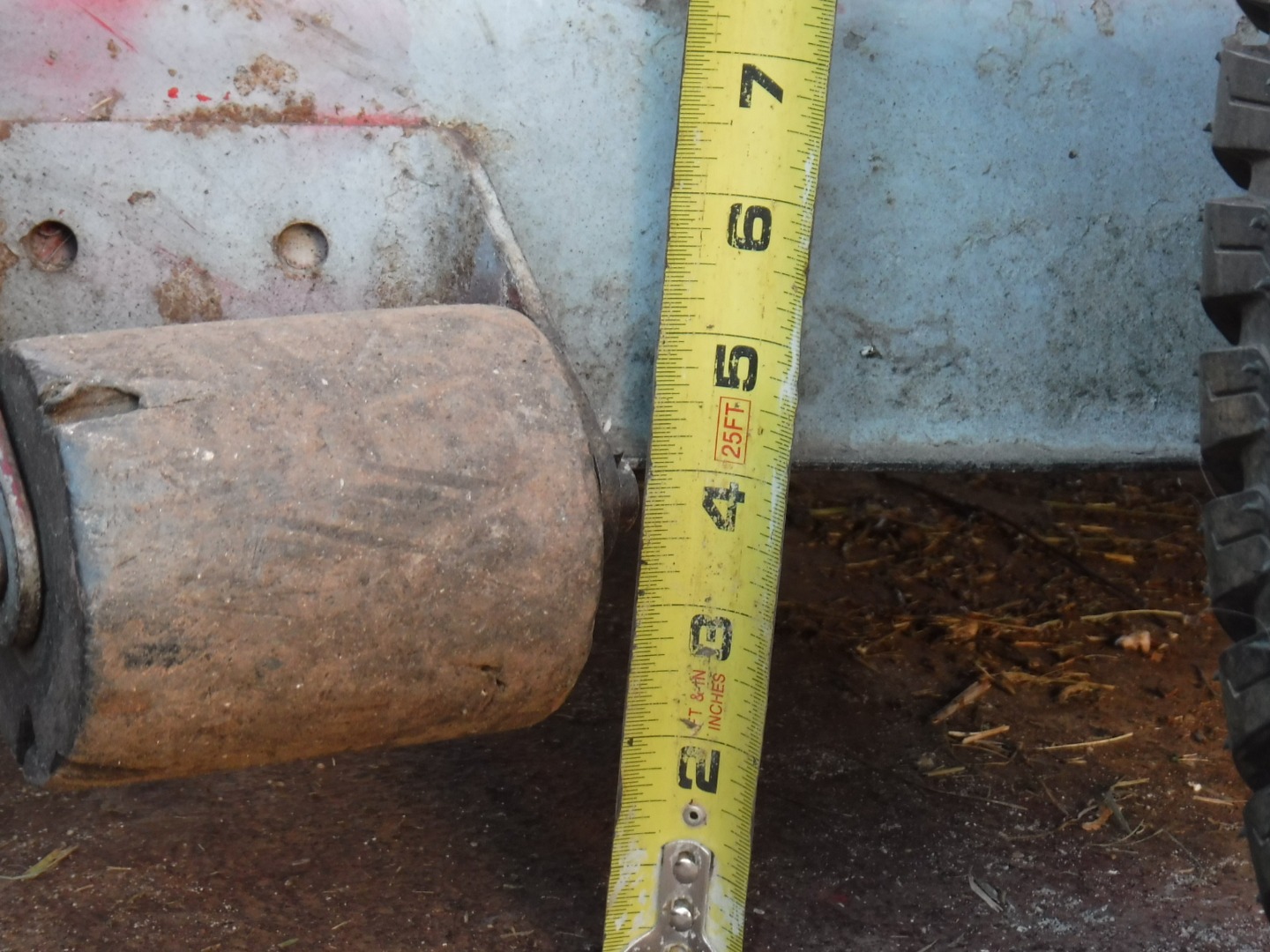

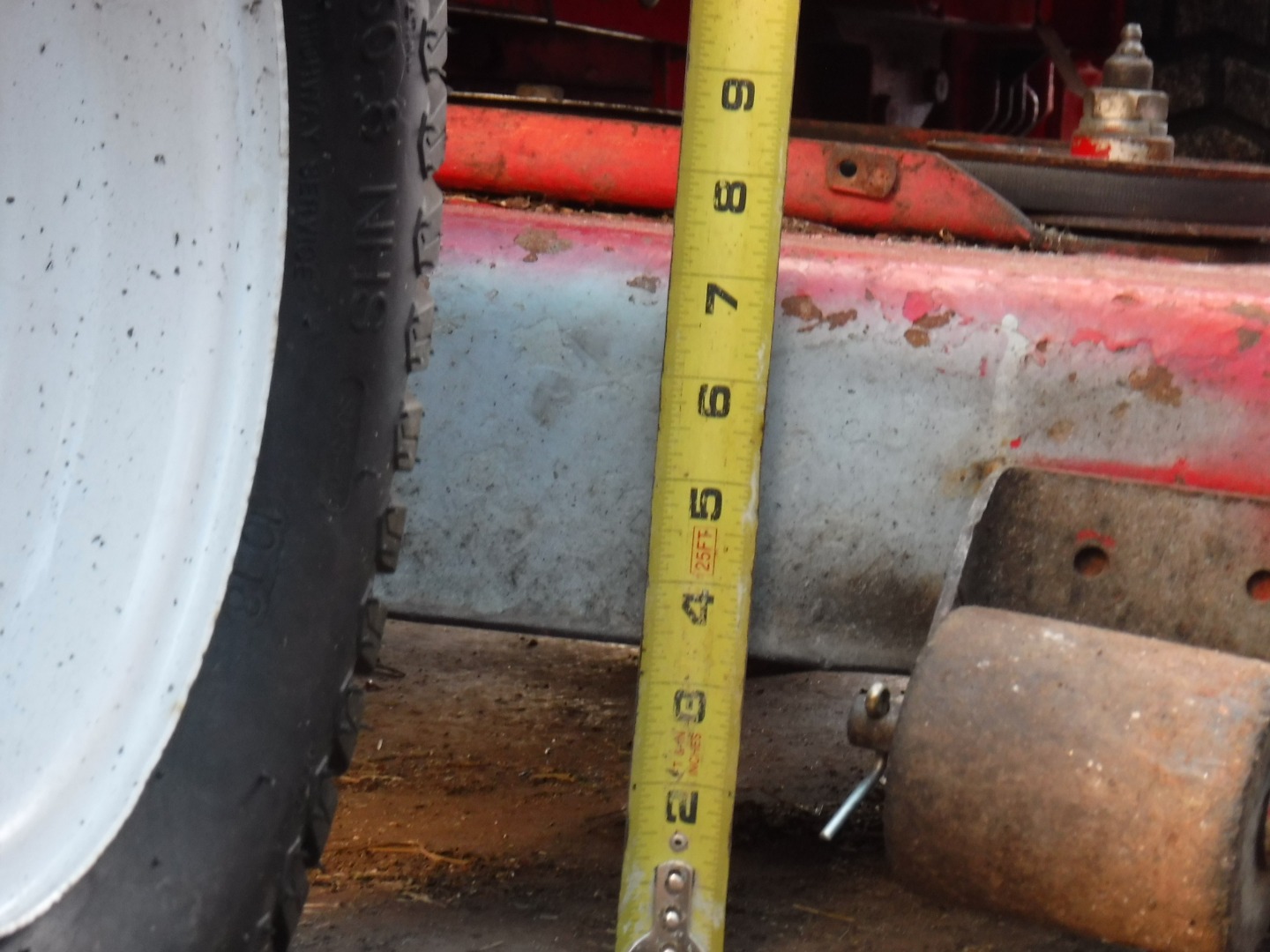

So here are some pics you will see on the left mower front is higher that is on the right side siting on the horse
Attachments:

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
08 Oct 2020 17:48 #16414 by Geno

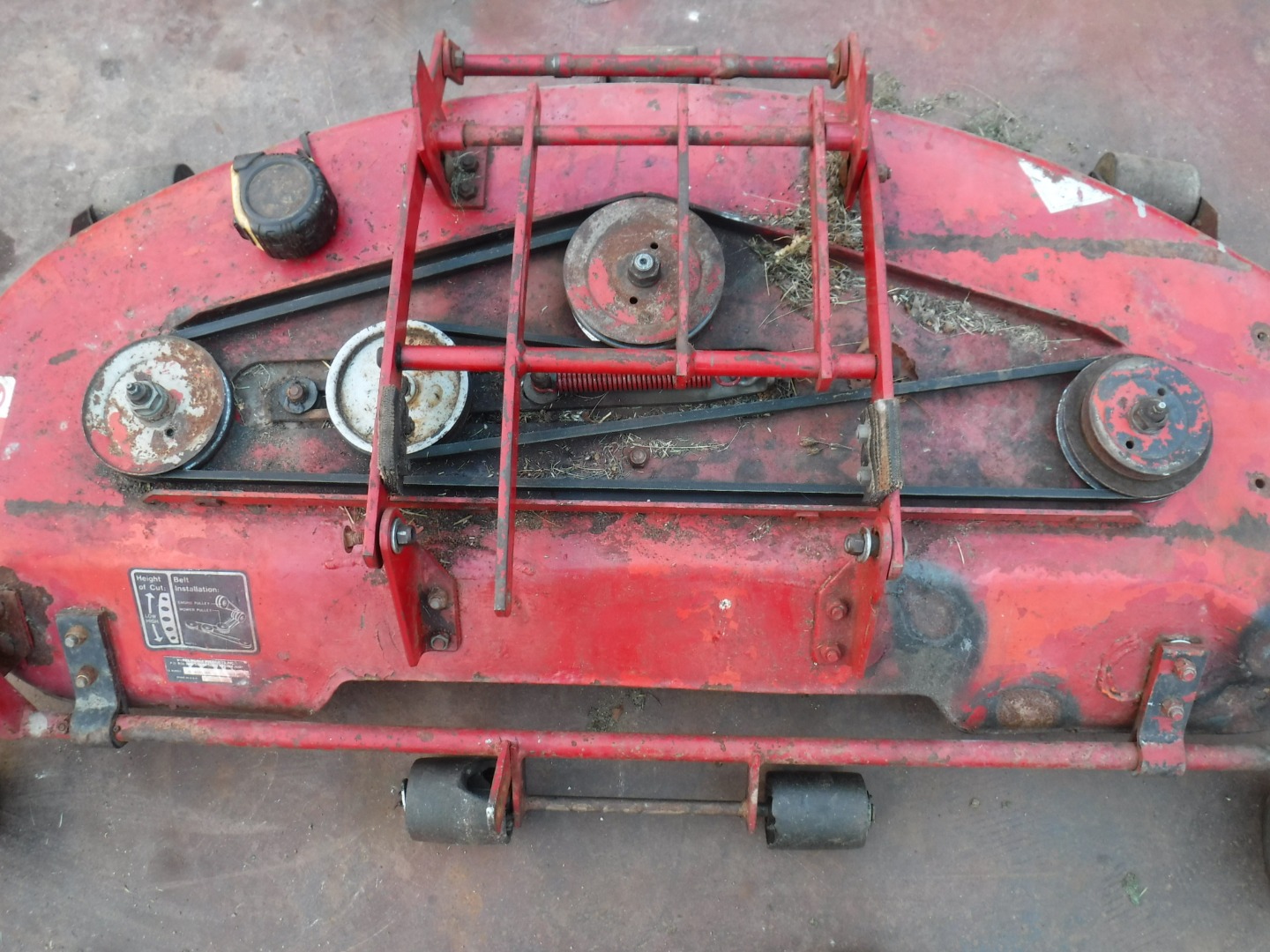

Is it just the view or is the front antiscalp wheel mount and deck bent in on the left facing it?

Welcome to the Stables!

Please Log in to join the conversation.

More
09 Oct 2020 06:37 #16418 by Guy
It is just the view
thanks

Please Log in to join the conversation.

More
09 Oct 2020 10:48 #16419 by JustinW.73
Looks like the mount on the crossbar is lower on the right than the left.
