Hub Removal
08 Apr 2015 15:33 - 08 Apr 2015 15:40 #2860
by M Bailey
Major
"I refuse to join any club that would have me as a member." Groucho Marx
Hub Removal was created by M Bailey

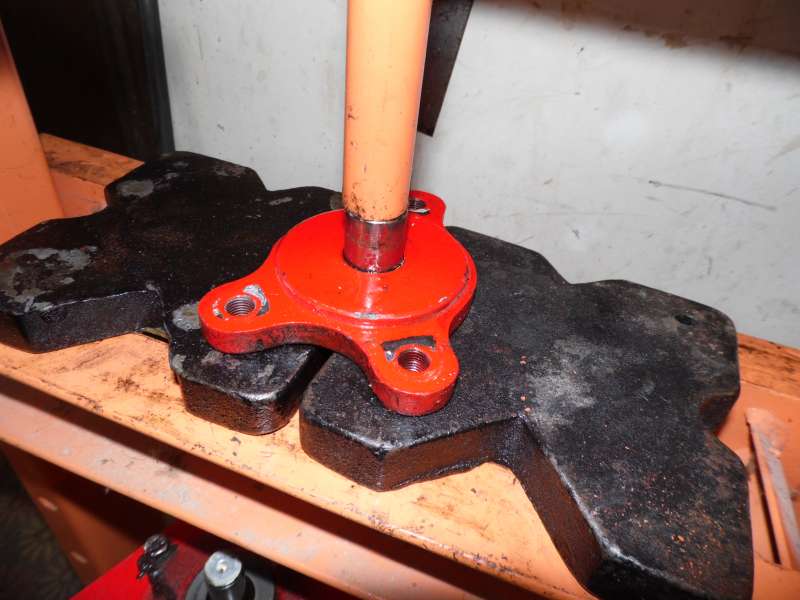

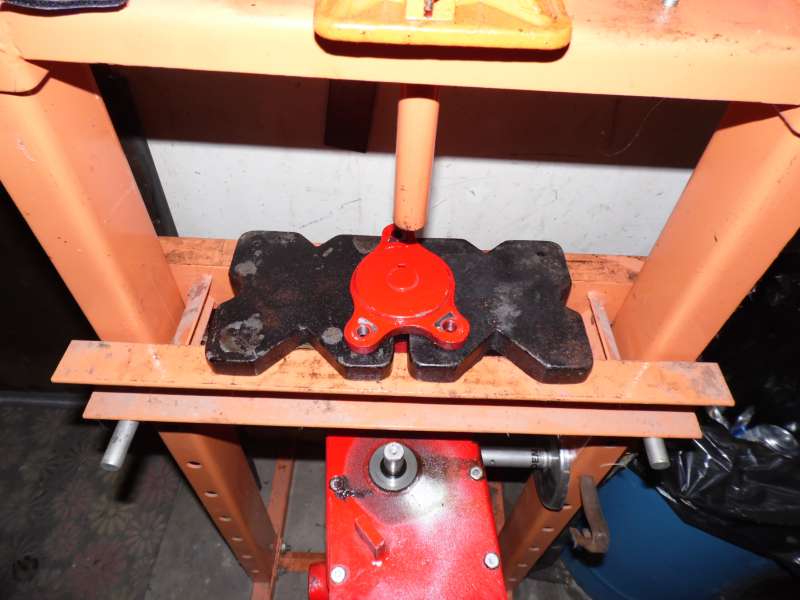

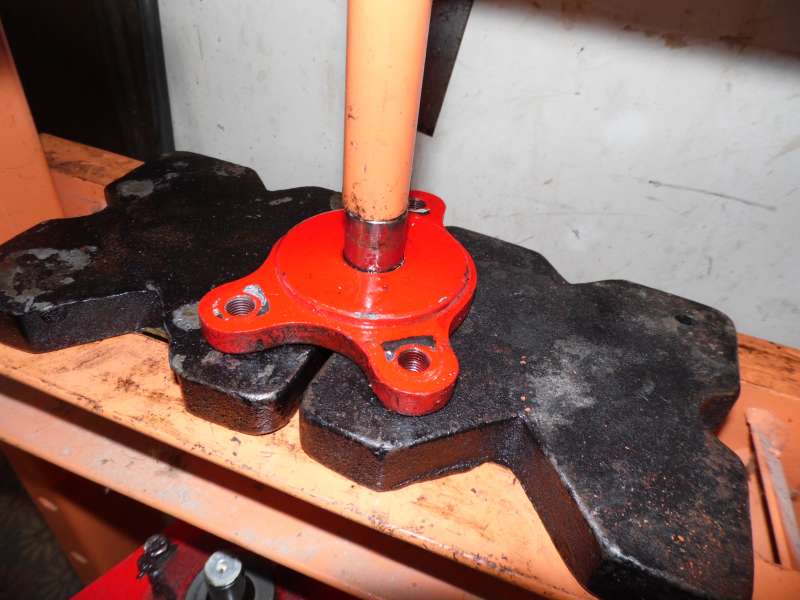

Here's how I removed the hubs on a 5010 Suburban transmission after 55 years of rust and abuse. This method works great, provided you have a press and a helper (to position the mandrels while you hold the transmission). The pics are self explanatory.

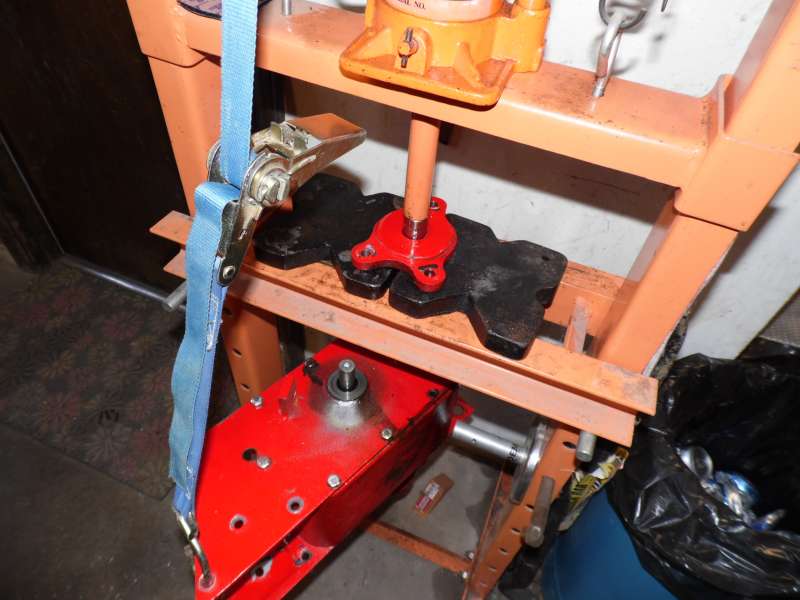

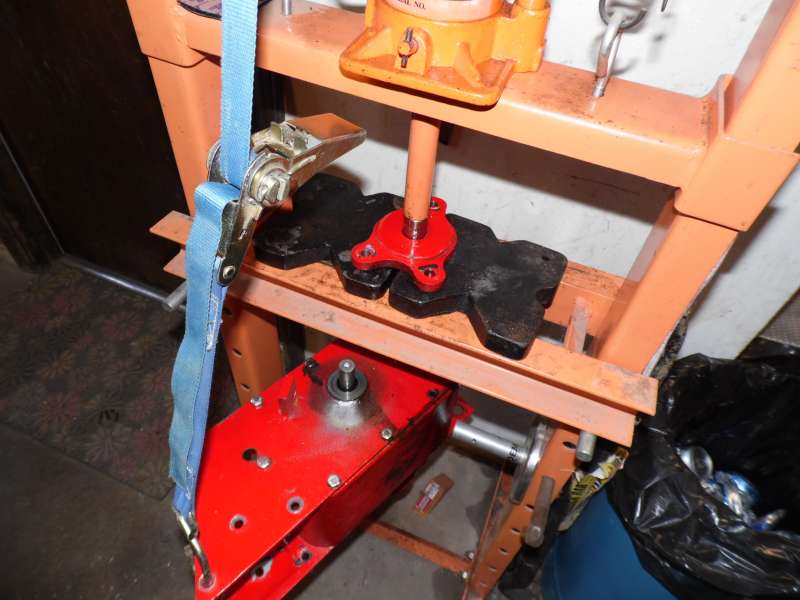

Just be sure to support the transmission with a strap first as shown in the last pic!
Just be sure to support the transmission with a strap first as shown in the last pic!
Major
"I refuse to join any club that would have me as a member." Groucho Marx
Last edit: 08 Apr 2015 15:40 by M Bailey.
