Throttle shaft bushing fix

More
03 Jul 2015 04:51 - 03 Jul 2015 05:34 #6463 by Trouty56
Throttle shaft bushing fix was created by Trouty56
Be pulling a few carbs for rebuilds this year and if the throttle shaft is loose am going to try this.....

Info from the video...."THE THRUST BEARING IS 1/4 X 7/16 X 1/16 THICK BRONZE AND THE SCREWS ARE 3-48 X 1/4 BRASS,"

Guess he used a drill press for convenience to set the bronze thrust bearing.....quick and easy.....little loctite....



Tried to put some ebay link in.....no go!!!

Bob T
Adams County Pennsyltucky

"One, that's easy to remember. It's the first number in the alphabet...." - Barney Fife
Last edit: 03 Jul 2015 05:34 by Trouty56.
The following user(s) said Thank You: GT 14, M Bailey

Please Log in to join the conversation.

More
03 Jul 2015 05:32 #6464 by GT 14
Replied by GT 14 on topic Throttle shaft bushing fix
Good info Bob
1969 GT-18
1978 C-101
1983 C-225

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
03 Jul 2015 08:31 #6471 by Geno
Replied by Geno on topic Throttle shaft bushing fix
I think Major has done this on a carb, someone around here has. :)
Welcome to the Stables!

Please Log in to join the conversation.

More
03 Jul 2015 09:12 - 03 Jul 2015 09:45 #6475 by M Bailey
Replied by M Bailey on topic Throttle shaft bushing fix

Geno wrote: I think Major has done this on a carb, someone around here has. :)

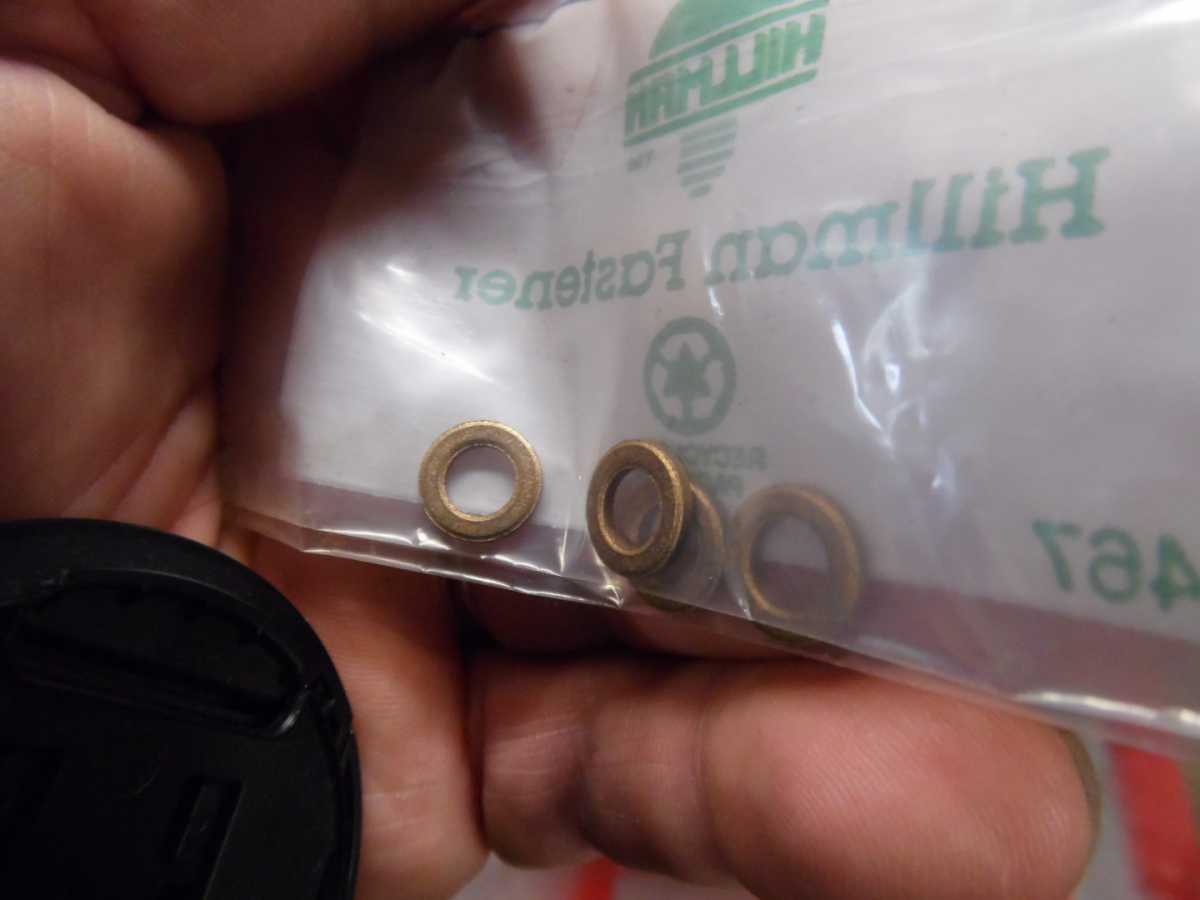

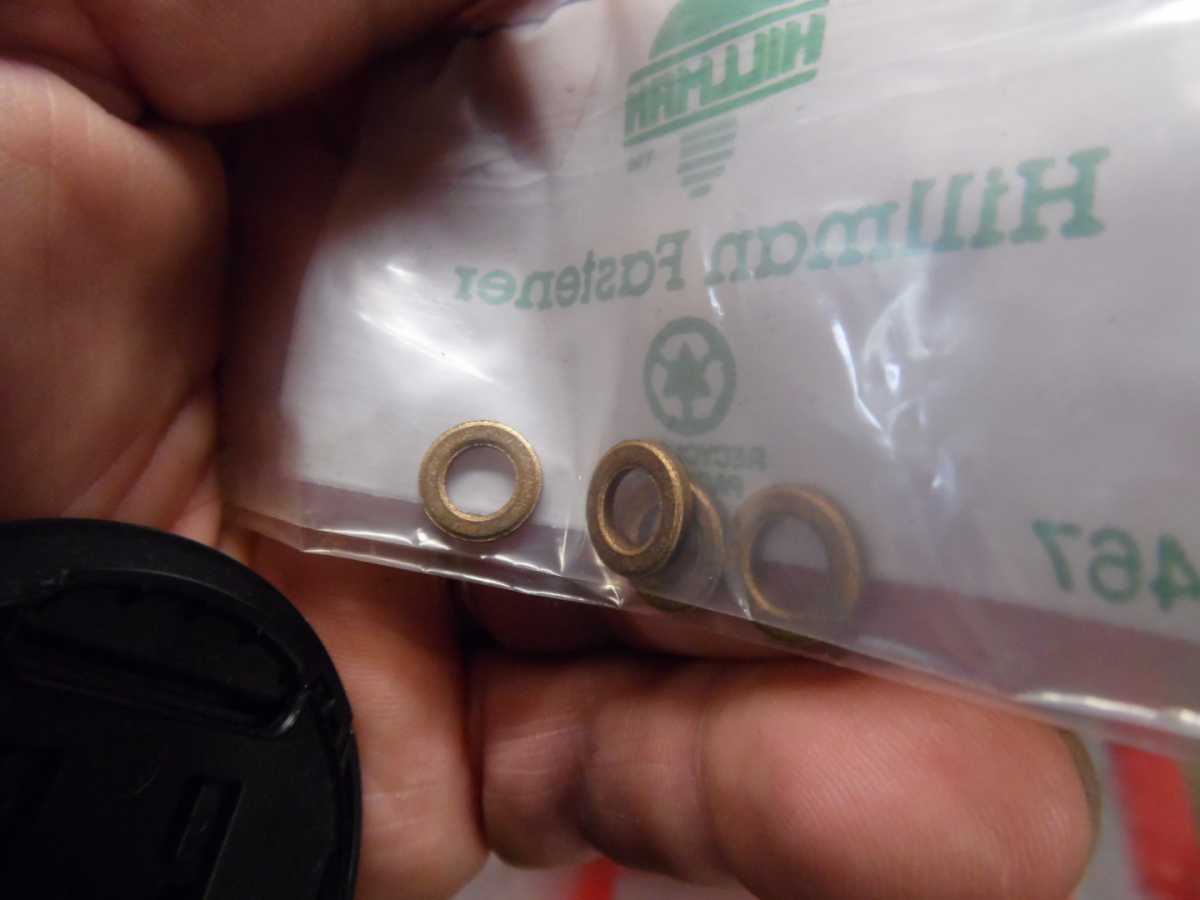

Great tip Bob and it really works well. Done a couple of them using 2 Hillman 58087-A 1/4 x 7/16 x 1/16 bronze thrust bearings stacked in the recess. A single would probably work okay but @ $.80 ea from Ace Hardware doubling them up seemed like a good idea.
Major


"I refuse to join any club that would have me as a member." Groucho Marx
Attachments:
Last edit: 03 Jul 2015 09:45 by M Bailey.
The following user(s) said Thank You: Trouty56

Please Log in to join the conversation.
