Routine Maintenance

Time to service the C-101 today. With 32 hours since last years rebuild on the meter and 25 since the last service it was time to get dirty. Greased the axle, spindles, wheels and steering sector. Checked the trans fluid level and cleaned the air pre-filter and blew out the paper filter. I do not oil the pre-filter as I've found that the oil leeches into the paper filter and shortens its usable life.

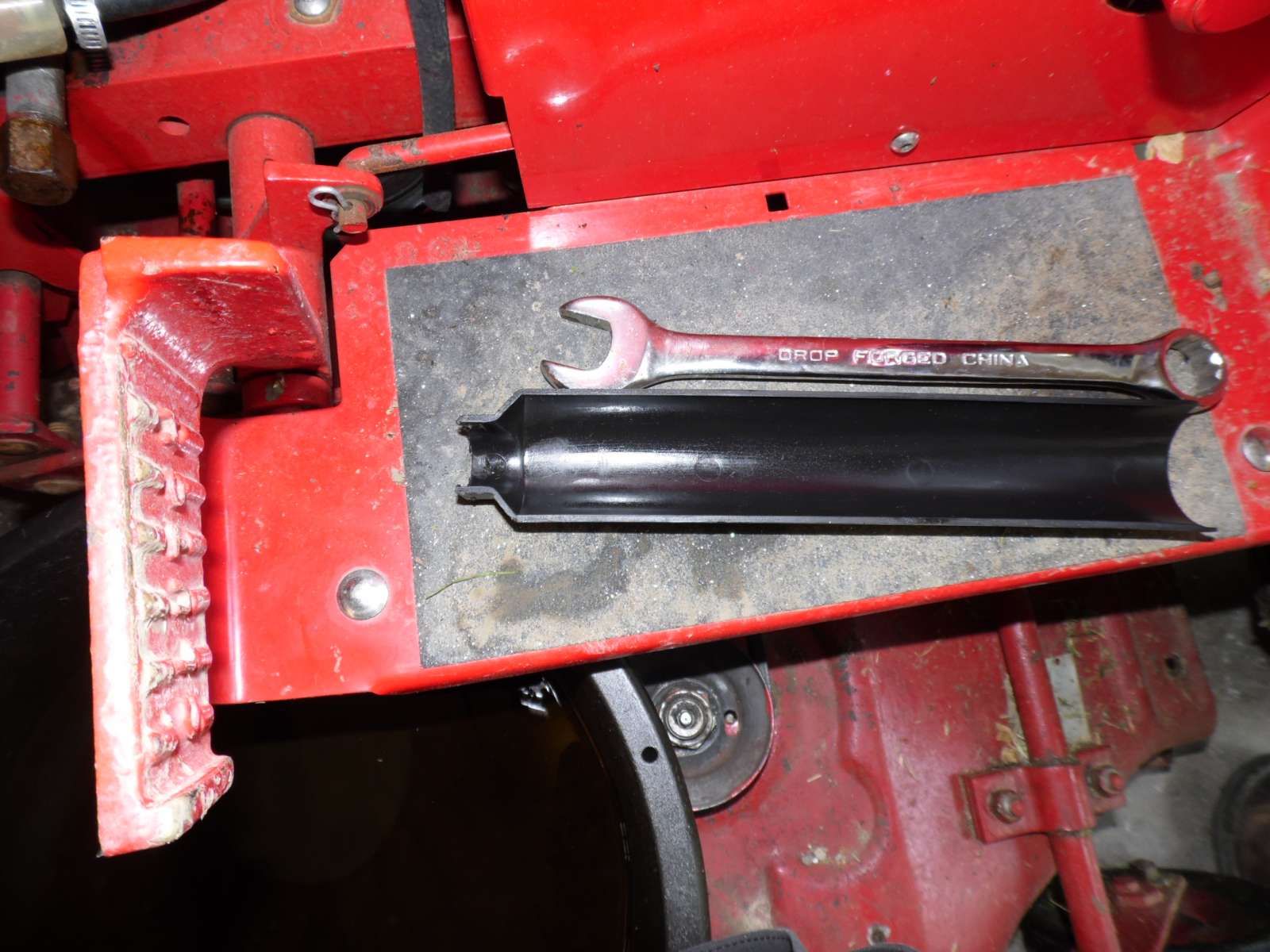

Get out the tools for the oil change including the handy little oil trough which makes changing oil with a deck on a snap.




2-1/2 quarts of oil and a new sticker under the hood and the old horse is good for another 25 hours.




Putting the wrench size along with oil capacity on the sticker helps out for next time, especially if you're like me and can't remember what you had for breakfast

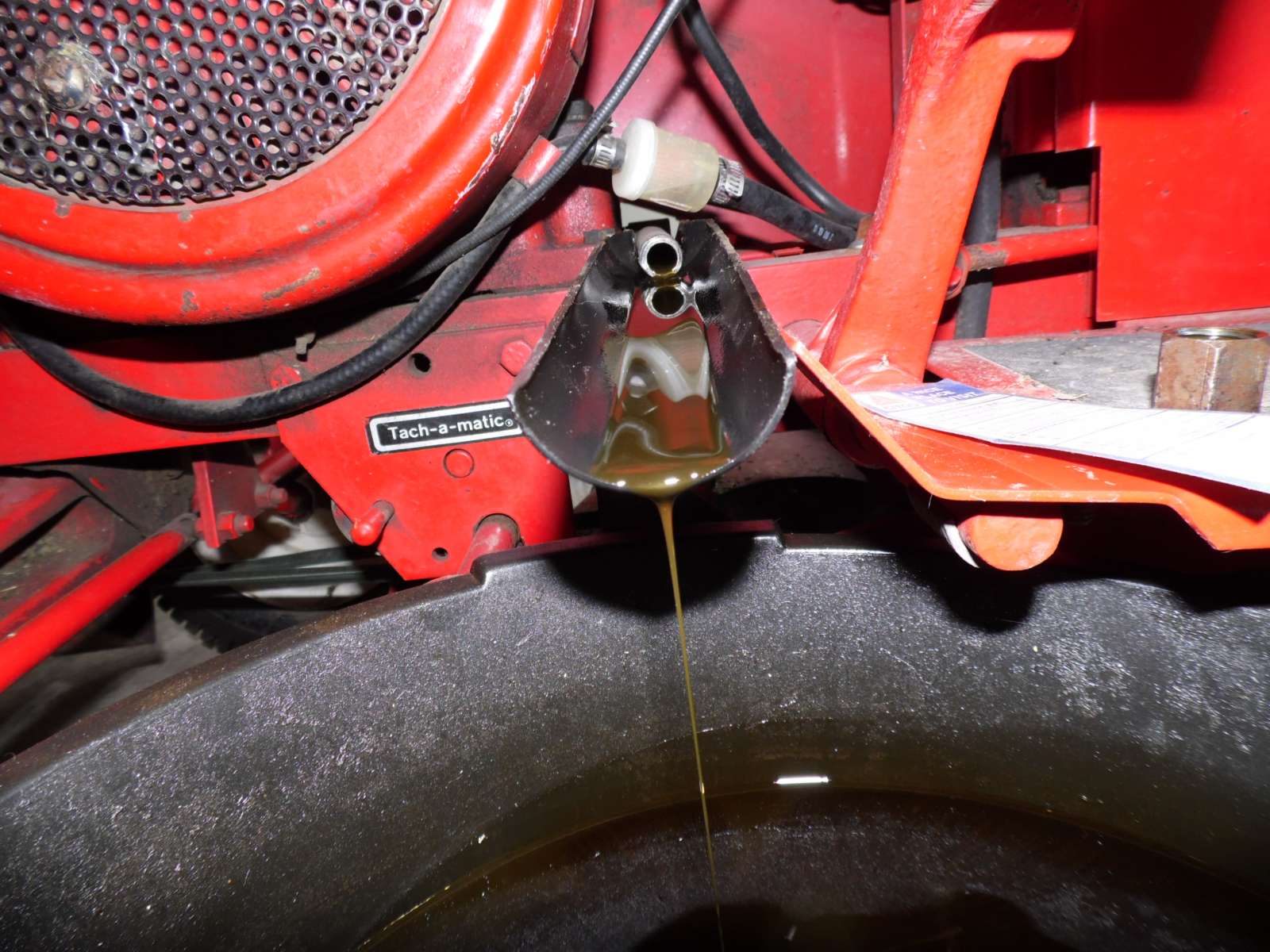

The handy little oil trough, what an idea!

Good idea Major, always a pain with the deck on.

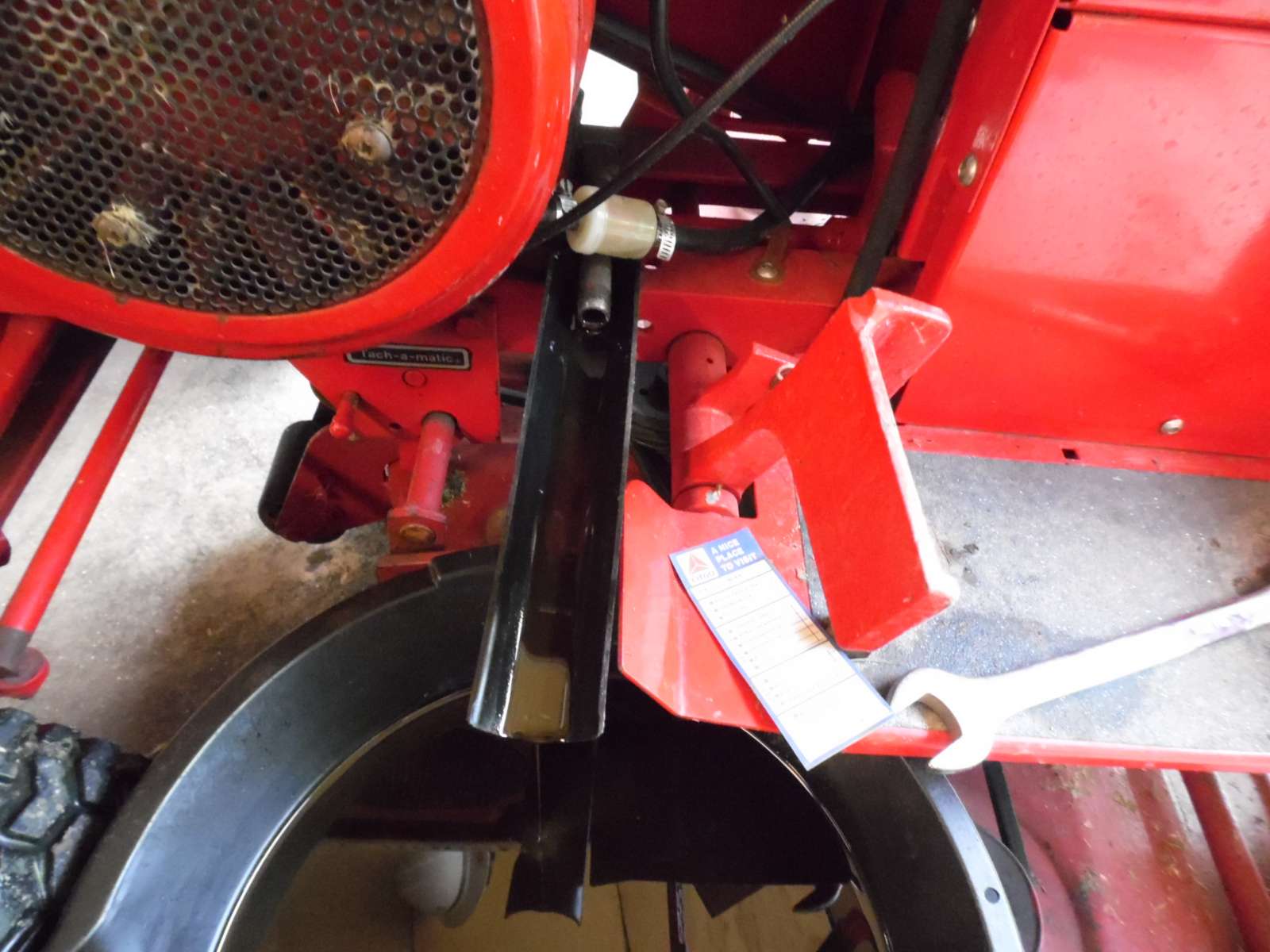

I should have posted this earlier, here's what the drain trough looks like in its entirety. Can't remember where it came from but it's been around for a long time.

It look like a housing for a small air pump cut in half..

Deck in the way.... Front mount it

....I cant say enough good about it.....

Whatever it is I have to have one!

Geno wrote: Whatever it is I have to have one!

Well if you look around your shop you mostly have two or three of whatever...

If I had one of those I'd know it. I thought about just cutting a piece of PVC pipe in half for starters, then I would have 2.

Geno wrote: If I had one of those I'd know it. I thought about just cutting a piece of PVC pipe in half for starters, then I would have 2.

Good thinking....twos better than one....
