21 Jan 2017 22:37 #13157 by 23 AUTOMATIC LSE
Replied by 23 AUTOMATIC LSE on topic How To Make An 18 Automatic Into A 23 Automatique LSE

Geno wrote: Let me see if I'm mixed up or not lol. The pics above were already black powder coated right? Then you decided to make it even better and had it blasted again, then did the filler, and will have it powder coated again? :confused1


Geno, no I am sorry for the confusion, I found the pics that I had taken prior to the powder coating, and decided to add them after I had already posted the pics of the powder coated frame. So the last group of pic were taken first and the first group of pics were taken last.

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
22 Jan 2017 17:14 #13161 by Geno
Replied by Geno on topic How To Make An 18 Automatic Into A 23 Automatique LSE
I wondered why you would want them any better lol. :rolling
Welcome to the Stables!
The following user(s) said Thank You: 23 AUTOMATIC LSE

Please Log in to join the conversation.

More
26 Jan 2017 06:55 - 26 Jan 2017 07:51 #13188 by 23 AUTOMATIC LSE
Replied by 23 AUTOMATIC LSE on topic How To Make An 18 Automatic Into A 23 Automatique LSE

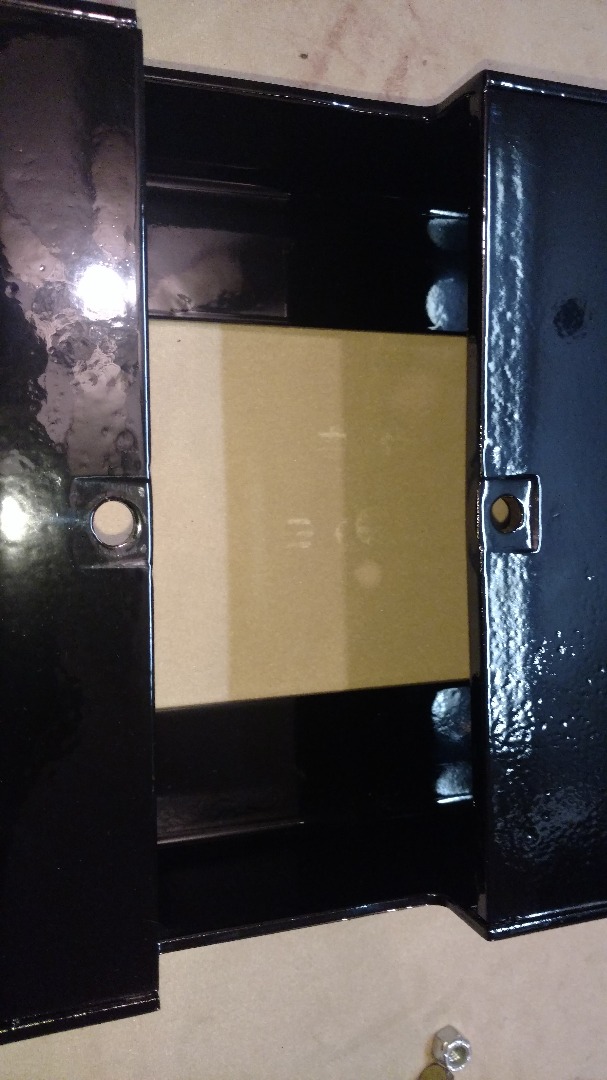

1.) Frame

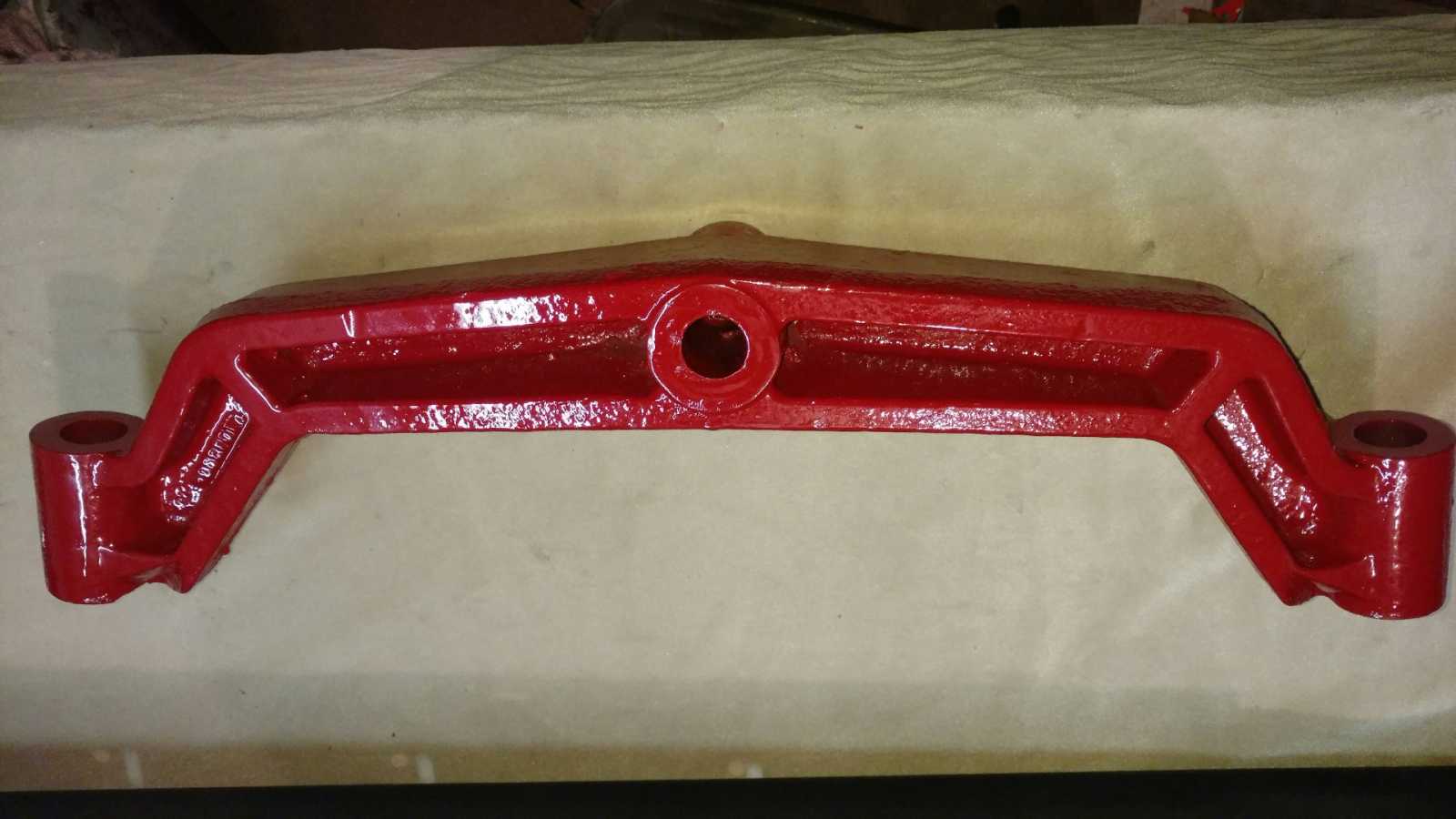

2.) Front Axle

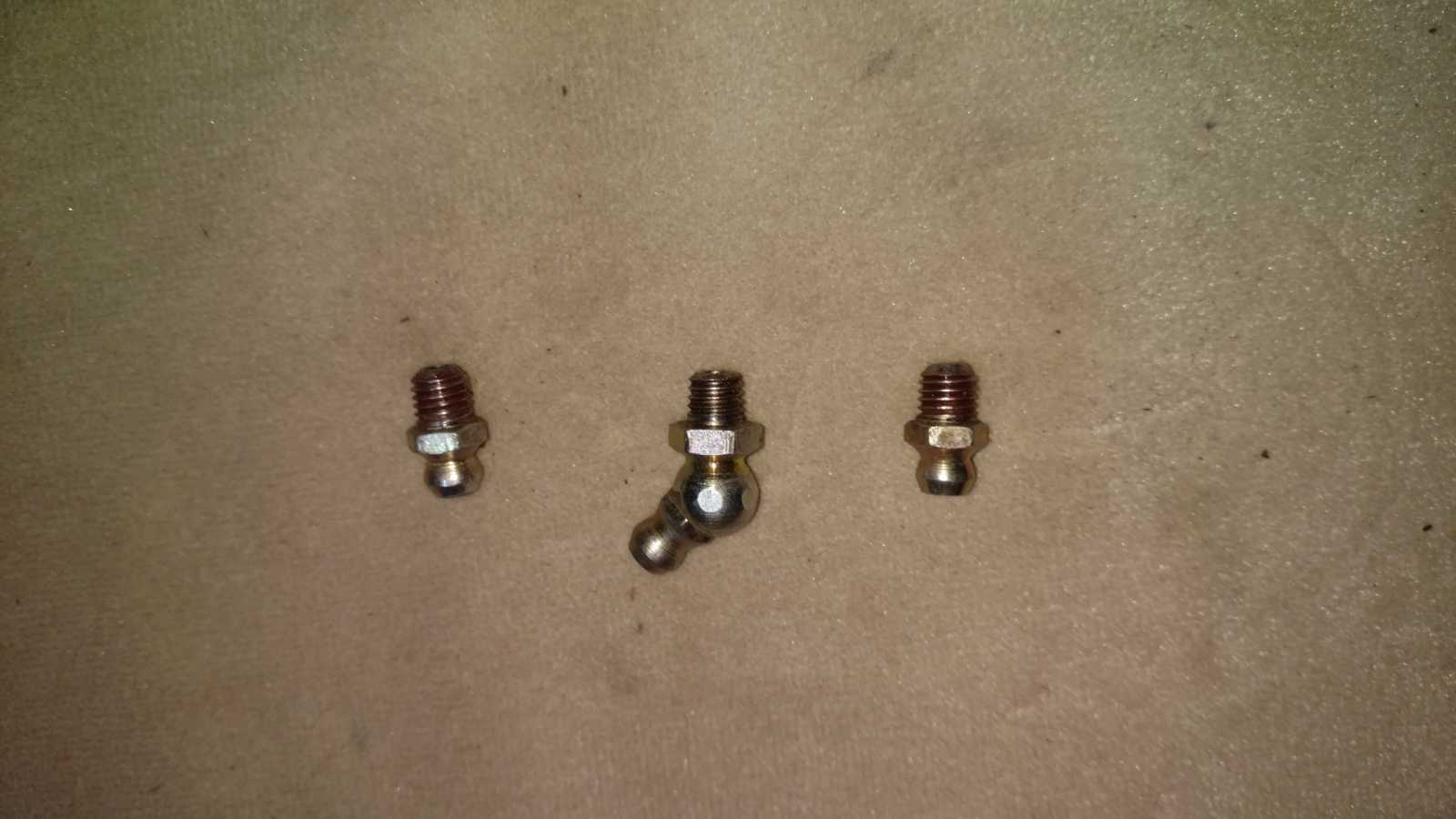

3.) Grease Zirks

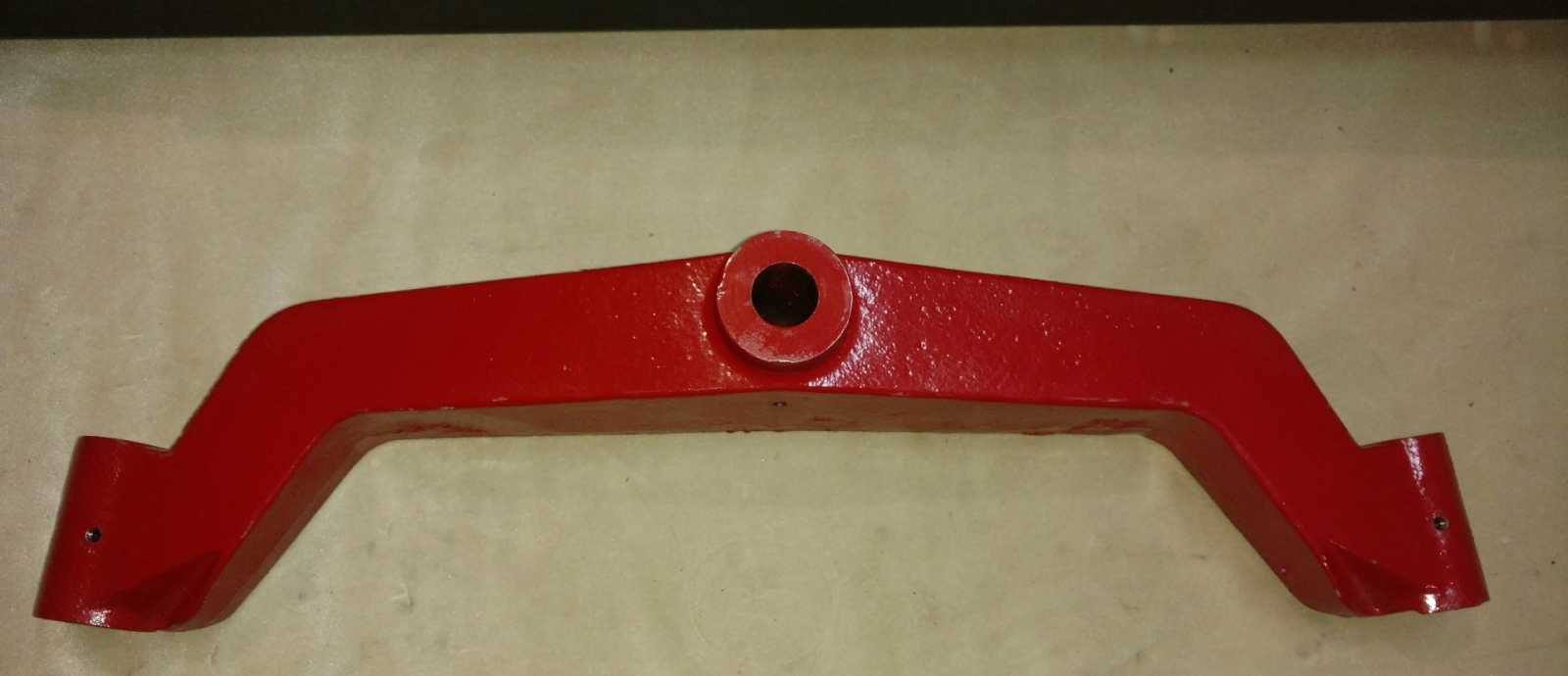

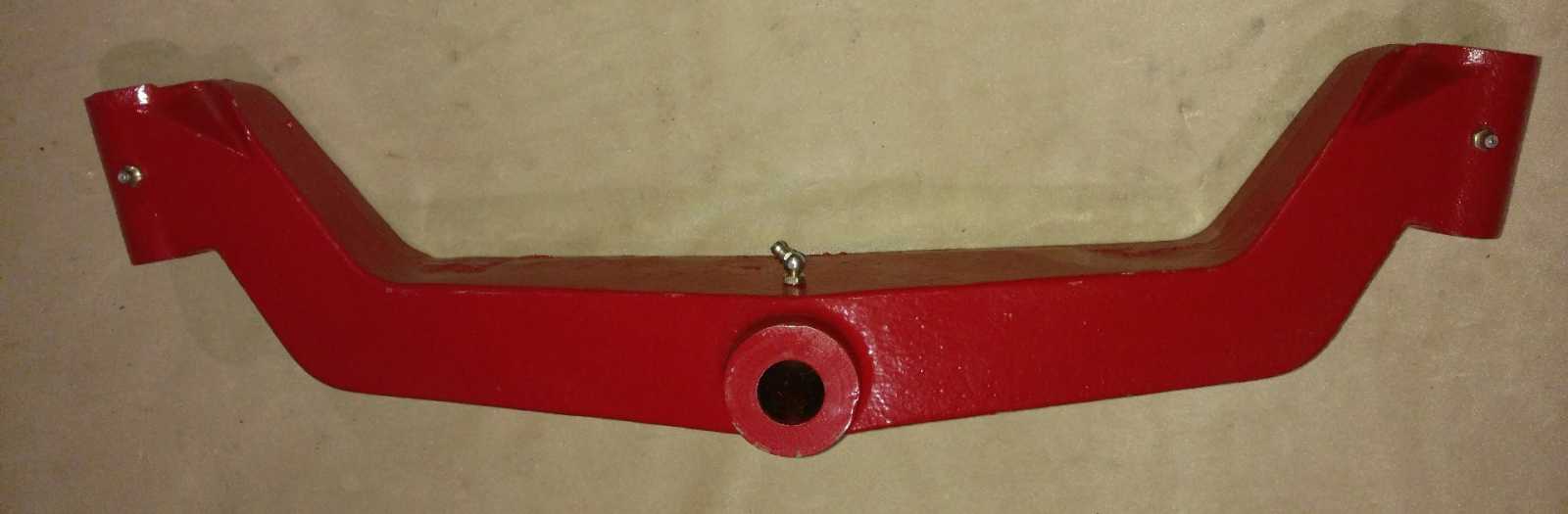

4.) Zirks Installed

Next mounting the axle
Attachments:
Last edit: 26 Jan 2017 07:51 by 23 AUTOMATIC LSE.

Please Log in to join the conversation.

More
26 Jan 2017 08:02 #13189 by nappypappy
Replied by nappypappy on topic How To Make An 18 Automatic Into A 23 Automatique LSE
Very very nice and shinny too.
1985 416-8
520-H
You can lead a horse to water but you can't make him drink.
I can't see the forest for the trees.
The following user(s) said Thank You: 23 AUTOMATIC LSE

Please Log in to join the conversation.

  • Geno
  • Offline
  • Administrator Supporter
  • Administrator Supporter
    Super Users
  • Wheel Horse Stables Owner
More
26 Jan 2017 08:27 #13190 by Geno
Replied by Geno on topic How To Make An 18 Automatic Into A 23 Automatique LSE
There's not much doubt it's gonna be better than new. :thumb1 :10
Welcome to the Stables!
The following user(s) said Thank You: 23 AUTOMATIC LSE

Please Log in to join the conversation.

More
26 Jan 2017 10:26 #13191 by 23 AUTOMATIC LSE
Replied by 23 AUTOMATIC LSE on topic How To Make An 18 Automatic Into A 23 Automatique LSE
Yes it is, thanks Nappy.

Please Log in to join the conversation.

More
26 Jan 2017 10:30 #13192 by 23 AUTOMATIC LSE
Replied by 23 AUTOMATIC LSE on topic How To Make An 18 Automatic Into A 23 Automatique LSE
Thanks Geno, it sure will be.

Please Log in to join the conversation.

More
26 Jan 2017 22:00 - 26 Jan 2017 22:05 #13193 by 23 AUTOMATIC LSE
Replied by 23 AUTOMATIC LSE on topic How To Make An 18 Automatic Into A 23 Automatique LSE

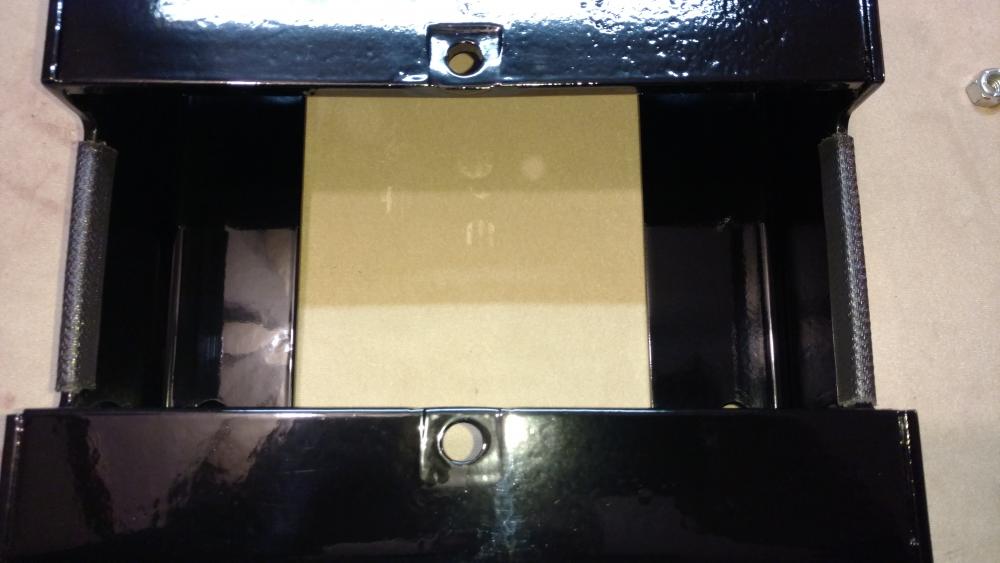

5.) Edge Trim {non OEM, just added for protection}

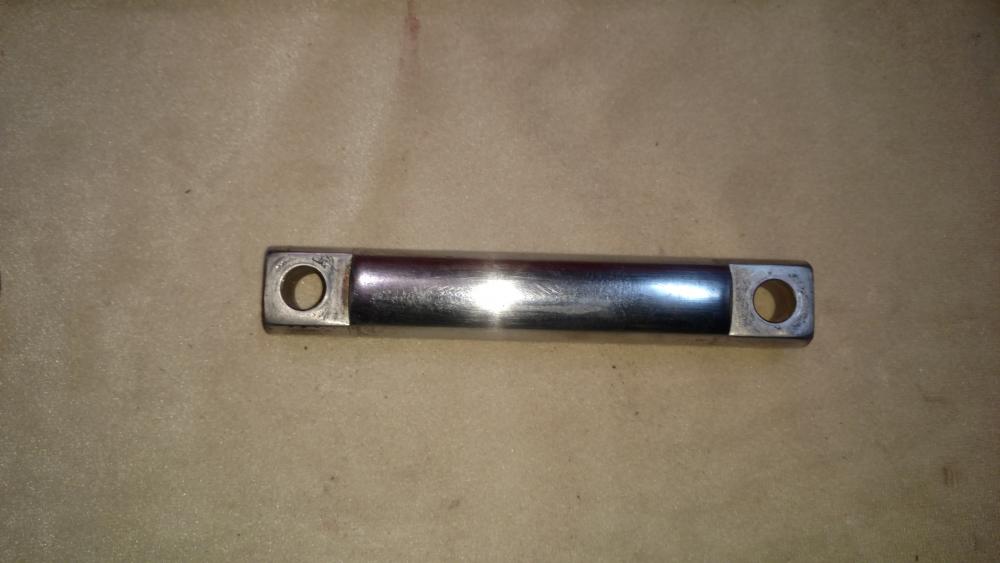

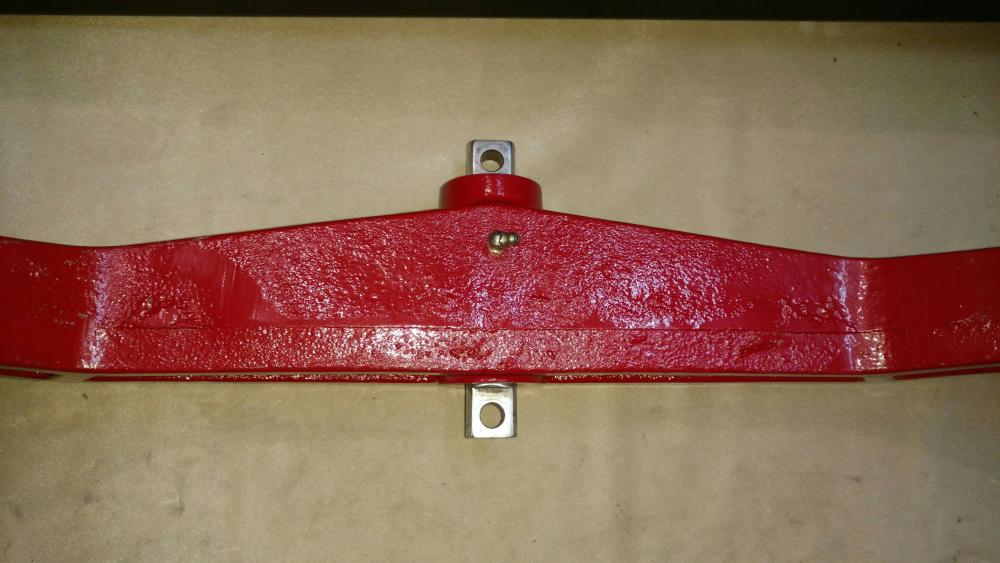

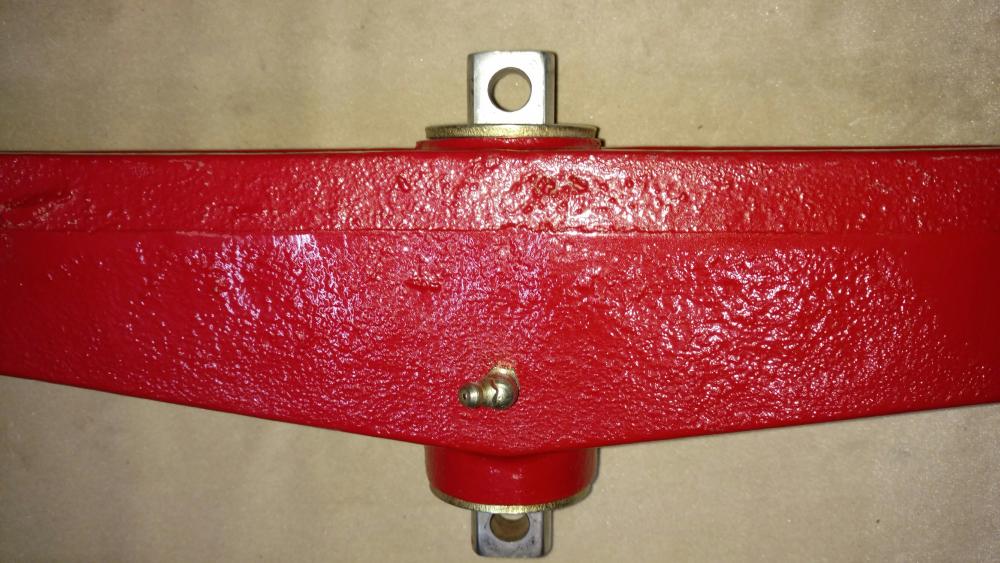

6.) Pivot Pin / Inserted

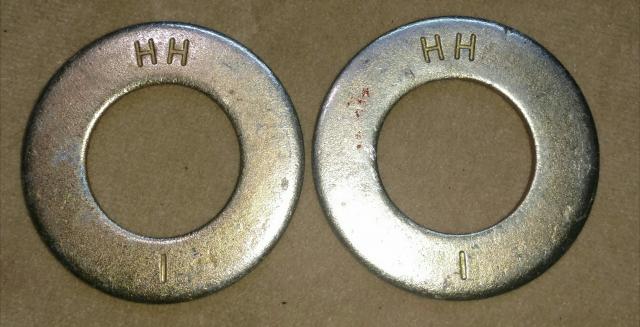

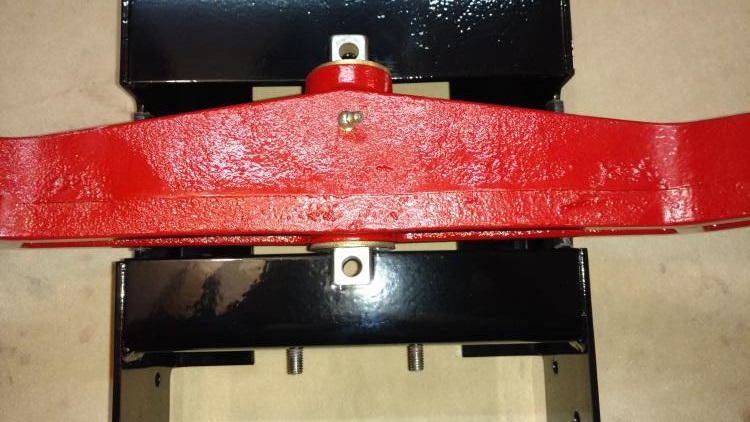

7.) Washers / Installed, Mounted

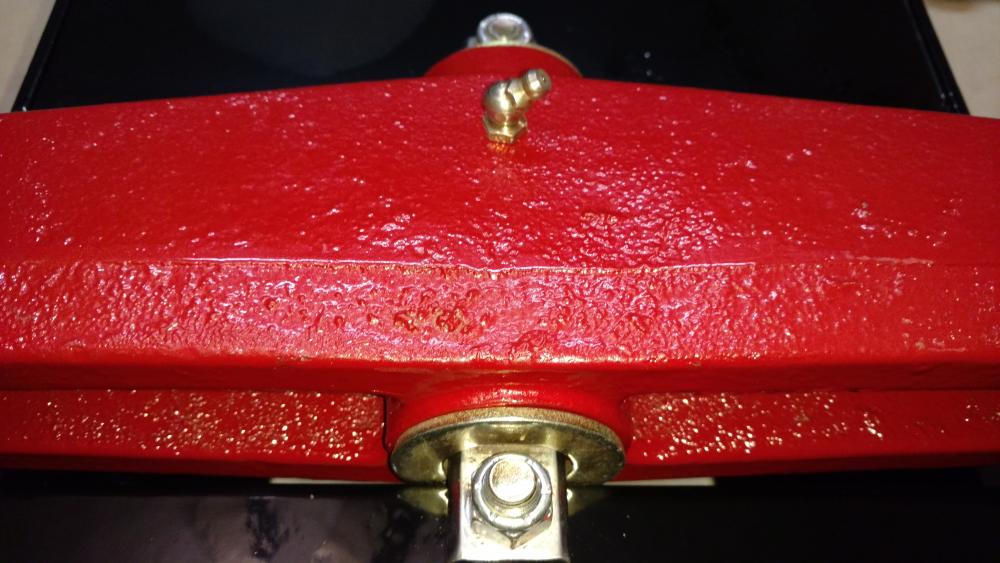

8.) Bolts and Lock Nuts Installed

Greased the center zirk here

Next, are the Spindles
Attachments:
Last edit: 26 Jan 2017 22:05 by 23 AUTOMATIC LSE.

Please Log in to join the conversation.

More
27 Jan 2017 05:48 #13194 by GT 14
Replied by GT 14 on topic How To Make An 18 Automatic Into A 23 Automatique LSE
That's going to be a show stopper.
1969 GT-18
1978 C-101
1983 C-225
The following user(s) said Thank You: 23 AUTOMATIC LSE

Please Log in to join the conversation.

More
27 Jan 2017 07:14 #13195 by 23 AUTOMATIC LSE
Replied by 23 AUTOMATIC LSE on topic How To Make An 18 Automatic Into A 23 Automatique LSE

GT 14 wrote: That's going to be a show stopper.

I hope to be able to stop at the show this year, complete or not, but Im 'sure going to do my best to try.

P.S. I am referring to Geno"S show of course.

Please Log in to join the conversation.
